Ceiling & APT Speaker

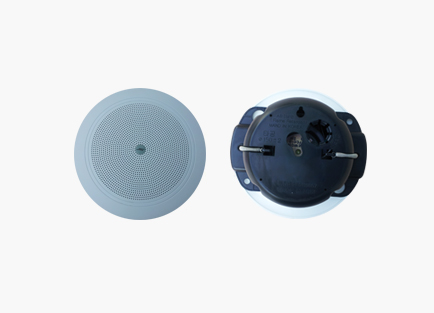

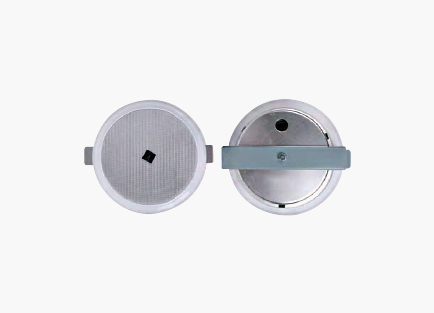

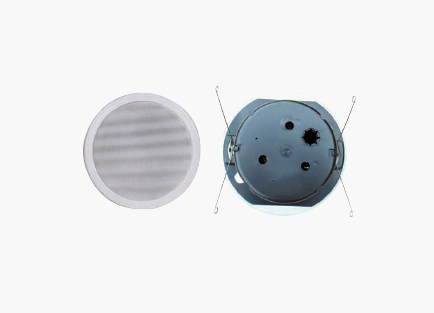

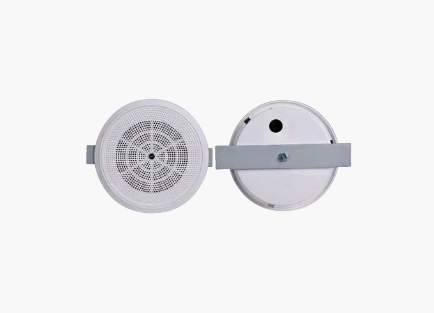

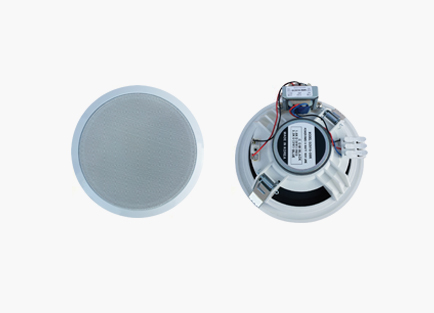

Ceiling speaker

Enhance from tone quality to best by using KS speaker

  • Built-in 6.5″ speaker
  • Easy to attach to a celing.
  • uilt in a matching transformer
  • Well fit with the surrounding environment

Specification

Model SJC-606RP
Input Power (Rated) 6W
Frequency 150Hz-16KHz
Impedance 1.6KΩ(6W), 3.3KΩ(3W)
SPL(1W/1M) 90dB
Materials ABS plastic
Color white
Net Weight 700g
Dimensions(mm) 190Ø x 80mm

Specification

Model SJC-303R SJC-305R SJC-310R
Input Power (Rated) 3W 5W 10W
Frequency 150Hz ~ 14KHz
Impedance 5KΩ, 3.3KΩ 3.3KΩ, 2KΩ 2KΩ, 1KΩ
SPL(1W/1M) 90dB 92dB 90dB
Materials ABS Resin / Steel
Materials White
Weight 1.02Kg 1.1Kg 1.12Kg
Dimensions(mm) 233∅ X 95mm

Specification

Model SJC-3RA SJC-5RA SJC-10RA
Input Power (Rated) 3W 5W 10W
Frequency 150Hz ~ 14KHz
Impedance 5KΩ, 3.3KΩ 3.3KΩ, 2KΩ 2KΩ, 1KΩ
SPL(1W/1M) 90dB 92dB 90dB
Materials Aluminum
Materials White
Weight 1.02Kg 1.1Kg 1.12Kg
Dimensions(mm) 235∅ X 95mm

Specification

Model SJC-3RP SJC-5RP SJC-10RP
Input Power (Rated) 3W 5W 10W
Frequency 150Hz ~ 14KHz
Impedance 5KΩ, 3.3KΩ 3.3KΩ, 2KΩ 2KΩ, 1KΩ
SPL(1W/1M) 90dB 92dB 90dB
Materials ABS Resin
Materials White
Weight 1.03Kg 1.15Kg 1.17Kg
Dimensions(mm) 225∅ X 95mm

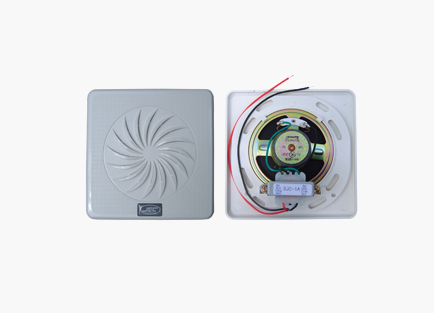

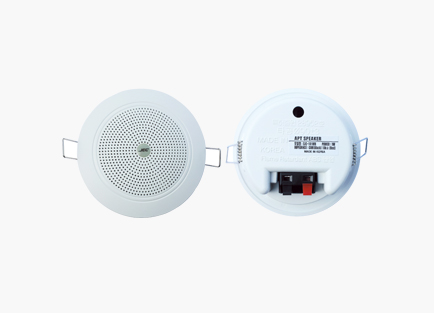

APT Speaker

A high quality speaker, protective grill is used

  • Input voltage : 100V line
  • Be applied in conference rooms, auditoriums, lecture halls, warehouses, schools, community center etc.

Specification

Model SJC-101WR SJC-103WR
Input Power (Rated) 1W 3W
SPL(1W/1M) 85dB 88dB
Frequency Range 320Hz-15KHz 320Hz-15KHz
Impedance Com. 10KΩ Com. 3.3KΩ
Dimensions(mm) 105 X 58mm(D)
Net Weight 210g 260g
Materials ABS Resin

Specification

Model SJC-03CES SJC-10CES
Input Power (Rated) 3W 10W
Frequency 150Hz-16KHz
Impedance 3.3KΩ(3W), 5KΩ(2W), 10kΩ(1W) 1KΩ(10W), 2KΩ(5W), 3.3kΩ(3W)
SPL(1W/1M) 90dB
Materials ABS plastic
Color white
Net Weight 500g 600g
Materials 180Ø x 87mm

Specification

Model SJC-1A
Input Power (Rated) 1W
Frequency 250Hz-12KHz
Impedance Com. 10KΩ(1W)
SPL(1W/1M) 85dB
Materials ABS plastic
Net Weight 500g
Materials 120 x 120 x 45mm(D)
