120W

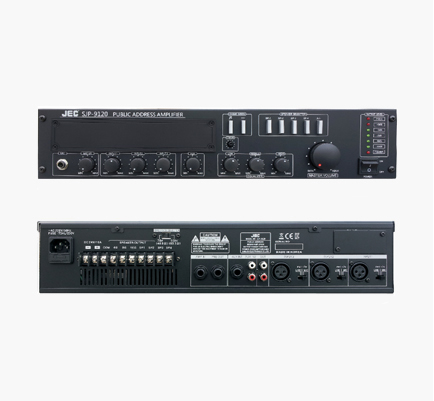

MODEL : SJP-9120 PA AMPLIFIER
Excellent Sound Quality! Strong Power!
It has an excellent music replay function with a PA amplifier close to SR.
The low-noise circuit design reproduces the pure and clean original-sound. It can be used for multi-purposes as it is designed as a multi-system. It is the best mixer amplifier appropriate for use in multiple locations including education centers, public offices, community centers, gyms, aerobic centers, factories, apartments, disaster and emergency broadcasting, and so on.
Product Features
- 4 microphones(XRL and 5.5 plug can be used)
- Phantom 24V supported for condenser microphone
- 3 external Inputs (Aux)
- Main Input/Pre out/Rec. out function
- 4 Speaker selectors, ALL x 1
- Speaker line (70V-100V) and 4Ω, 8Ω, 16Ω
- Echo delay
- Chime, emergency siren
- 3 band tone control volume
- Level meter displays the output condition
- DC 24V connector against blackout
- Built-in bracket for the installation of rack cabinet
- Built-in type of circuit breaker against high temperature and overload
Specification
Item | P. A. Amplifier | |
Model | SJP-9120 | |
Power Output | 120W(RMS) | |
Input Channel | Mic : 4channel, Line : 4 channel | |
Out selector | Channel 1,2,3,4, All | |
Other function | Phantom/ Equalizer / Impedance selector Voice priority/ Chime / Siren / Pre-out / Aux input / Over heat protect / RTC module |
|
Output | Speaker output 4 ohm(22V) / 8 ohm (31V) / 16 ohm(44V) / 100V(83 ohm) |
|
Frequency Range (±3dB), 8 ohm/1W | 50~16,000HZ | |
THD (Total harmonic distortion) | Less than 1% at 1KHz, rated power | |
S/N Ratio(THD) | line | More than 75dB |
Input sensitivity | Mic | -52dBm/600Ω(balanced) |
Line | -10dBm/15KΩ(Unbalanced) | |
Ext Amp In | -0dBm/15KΩUnbalanced) | |
Preout Level | -0dBm/10KΩ(Unbalanced) | |
Dimension(WxHxD) | 420 x 90 x 350(mm) | |
Net Weight | 10.40kg | |
AC Power | AC220V/60Hz, DC24V | |
Power Consumption | 370W |
