Without transformer

Specification

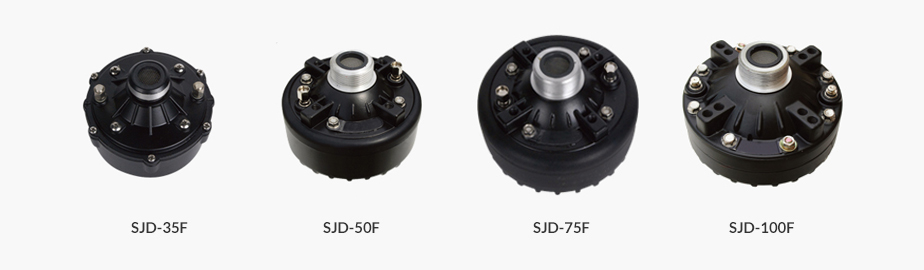

Model SJD-35F SJD-50F SJD-75F SJD-100F
Power Rating 35W 50W 75W 100W
Frequency Range 250 ~ 6 KHz 250 ~ 5 KHz 250 ~ 4.5 KHz 150 ~ 5 KHz
Impedance
SPL(1W/m) 110dB 112dB 112dB 113dB
Diameter & Height 110 x93mm 117 x94mm 124 x94mm 117 x100mm
Voice Coil Diameter 49.5mm 50.5mm 51mm 66mm
Color / Finish Black / Epoxy
Mounting 1-3/8-18 UNEF, Threaded Throat
Net Weight 1.7Kg 2.2Kg 2.7Kg 3.4Kg
Materials Ferrite Ferrite Ferrite Alnico
