480W

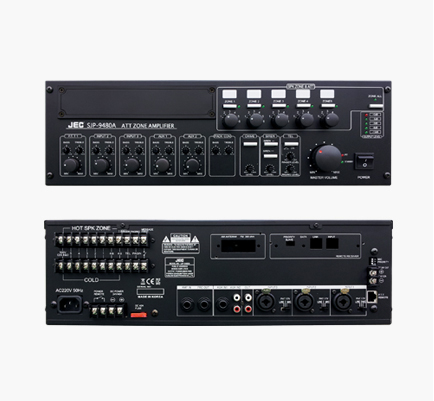

MODEL : SJP-9480A ATT ZONE AMPLIFIER
Product Features
- 5 speaker-zone selectors – possible to set 5 zones and control the volume for each zone.
- P.T.T. (push to talk) Adopted
- Phantom power supported for condenser microphone.
- Telephone paging and Night ringer
- 2-tone siren/4-tone chime and volume control available
- When connecting the digital message, automatic power supply and automatic warning broadcasting system are activated.
- Level meter display the output condition.
- Built-in overheat and overload protection circuit
- Equalizer (treble, bass) for each input (zone) adopted
- 4 microphones supported (XLR or 5.5mm plugs available)
- 3 AUX (the external input) supported. Recording available.
- Various outputs adopted for matching of speaker impedance
- Digital message, chime and 3 remote controllers connected to run
- Voice selection function as a priority
- DC 24V connector against blackout
- Power supply remote controlling function
- Rack cabinet installation available
Specification
Item | ATT. 5 Zone Amplifier | |
Model | SJP-9480A | |
Power Output | 480W(RMS) | |
Mic. Channel | 5 ZONE(5 Zone & volume control for each zone) | |
Zone selector | 1,2,3,4, 5, All | |
Other function | Phantom / Equalizer / Voice priority / Chime / Siren / Pre-out / Aux input / Over heat protect / Module |
|
Output impedance | Speaker output Low -4 ohm / High-100V |
|
Frequency Range(±3dB), 8 ohm/1W | 50~16,000HZ | |
THD(Total harmonic distortion) | Less than 1% at 1KHz, rated power | |
S/N RATIO(DIN Audio) | line | More than 75dB |
Input sensitivity | Mic | -50dBm/600Ω(balanced) |
Line | -22dBm/15KΩ(Unbalanced) | |
Ext Amp In | -0dBm/15KΩ(Unbalanced) | |
Preout Level | -0dBm/10KΩ(Unbalanced) | |
Dimension(WxHxD) | 430x355x133mm | |
Weight | 21KG | |
AC Power | AC220V/60Hz, DC24V | |
Power Consumption | 1,490w |
